Electromagnetic separator series CF, CFL

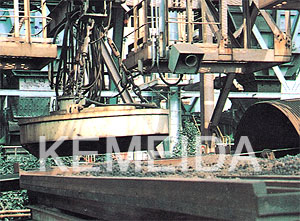

This product series is specially designed for removing the harmful iron mixed in the magnetic ores with 10% operating shift rate. When in operation, the unit will be suspended over the conveyer belt matched with powered cart and metal detector, adopting PC program control commutation equipment. The harmful iron pieces will be removed from the magnetic ores on the conveyer through the procedure of detecting, holding the materials, picking up the materials, iron removing and recovering, meanwhile, the held magnetic ores will auto fed back to the conveyer for recovery.
It is suitable for removing the iron magnetic foreign articles in the magnetite, sintered ores and ball ores. If there is still non-magnetic iron pieces in the ores (high manganese steel), it is suitable to arrange one more metal detector behind the separator, through detecting, warning, locating, thus the iron pieces will be picked up manually after the equipment is stopped.
Main Technical Data (duty cycle 10%)
| Model | Belt Width br /> mm | Hanging Heightnbsp; hmm |
Matiral Thickness ≤mm |
Rated Voltage V | Excitation Power ≤kw |
Belt Speed ≤m/s |

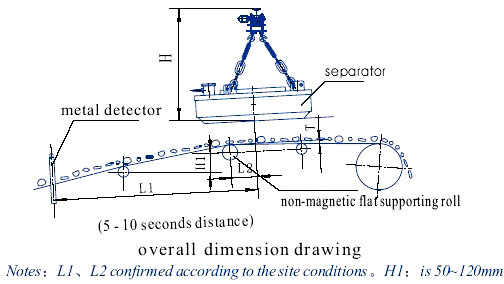

Ovrall Dimension | Mass kg |
|
| A | H | ||||||||
| RCDP-5 | 500 | 150 | 100 | DC- 350/290/100 |
7.4/5.1/0.6 | 2.5 | 600 | 850 | 420 |
| RCDP-6 | 650 | 200 | 150 | 14/9.8/1.15 | 2.5 | 800 | 1000 | 521 | |
| RCDP-8 | 800 | 250 | 200 | 17.4/12/1.4 | 2.5 | 900 | 950 | 648 | |
| RCDP-10 | 1000 | 300 | 250 | 32/21/2.53 | 2.5 | 1200 | 1080 | 1193 | |
| RCDP-12 | 1200 | 350 | 300 | 43/29.8/3.54 | 2.5 | 1300 | 1190 | 2258 | |
| RCDP-14 | 1400 | 400 | 350 | 55/37.7/4.5 | 4.0 | 1500 | 1790 | 3122 | |
| RCDP-16 | 1600 | 450 | 400 | 64/44.5/5.3 | 4.0 | 1800 | 1630 | 3802 | |
| RCDP-18 | 1800 | 500 | 450 | 99/66/7.9 | 4.0 | 2100 | 1730 | 5813 | |
| RCDP-20 | 2000 | 550 | 500 | 118/81/9.7 | 4.0 | 2400 | 1850 | 6900 | |
Note:
(1) Three power values in the column of cold excitation stand for power consumption at different voltages.
(2) For the parameters about running gear and rail, refer to the content for separator installation in the separator appendix.
(3) For several solutions provided for separating iron from magnetic materials, it is advised to consult with our technicians before choosing the model.
