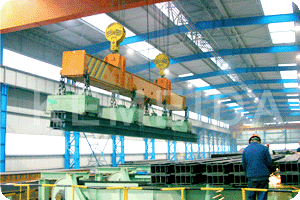

Lifting Electromagnet MW27 for Heavy Rail

Electromagnet series MW27 which adopts unique “┍┳┑”type of magnetic circuit can lift and transport heavy rail, profiled steel and beam blank, etc. There are two kinds: normal and high temperature type. Normal multiple units are adopted.

MW27 Normal Temperature Type

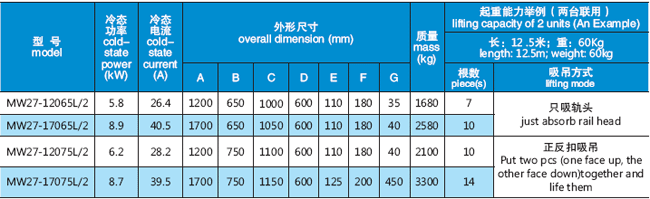

Main technical data (rated voltage DC-220V, duty cycle TD-60%)

MW27 High Temperature Type
Main technical data (rated voltage DC-220V, duty cycle TD-60%)
