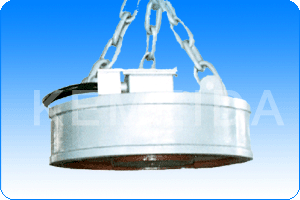

Owing to big magnetoconductivity, this product has light self-weight and powerful attraction force and can be used for large steel ingot, co-casting slab caster, thick steel plate. To avoid tilting caused by offcenter, When to lift a slab caster more than 6m, we advice you to use combination of two units.

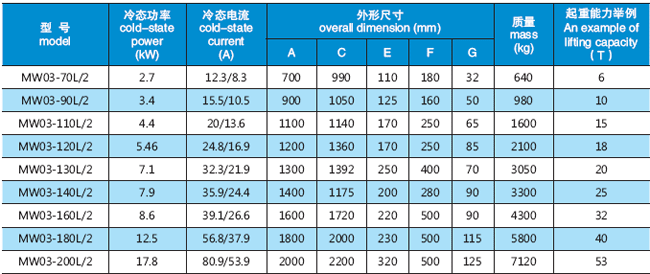

MW03 Normal Temperature Type
Main technical data (rated voltage DC-220V, duty cycle TD=60%, steel temperature: below 150°C)

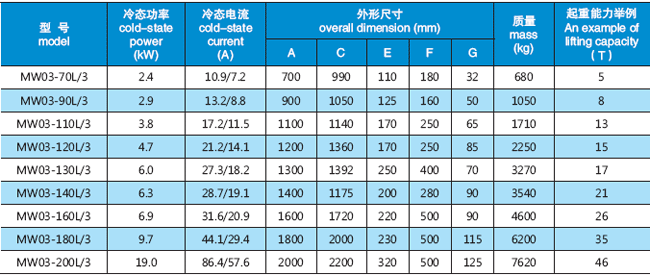

MW03 High Temperature Type
Main technical data (rated voltage DC-220V, duty cycle TD=60%, steel temperature 150~600°C)
MW03 Over-High Temperature Type
Main technical data (rated voltage DC-220V, duty cycle TD=60%, steel temperature 600~700°C)
