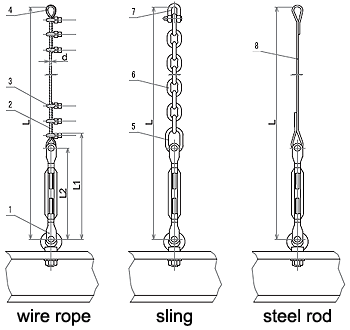

Walking Device of Separator
1. rigging screw 2. wire cable 3. wire cable grip 4. ring 5. step-up ring
6. short link chain 7. forging shackle 8. steel rod
Notes
1. Steel rod is provided with open type (welded by user) and sealed type
2. Rigging screw can be chosen beyond the following list. Please state the desired model.
3. Attention for choosing wire rope
(1) Cable grip on wire cable can’t be set one obverse and the other reverse.
(2) U -shape bolt must enter from the gap at the tail, and snap from one side of live section.
(3) Connect each end of wire cable. The number and space of one group of cable grip is shown as following:

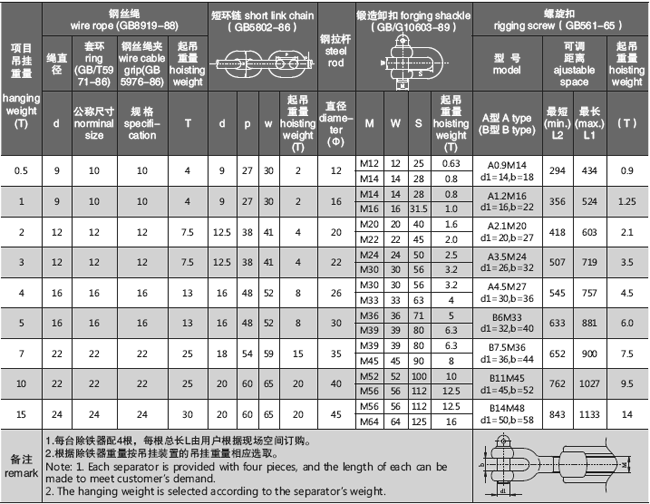

Model Selection Table
